China Side Type Hydraulic Rock Breaker for excavator for sale Supplier, Companies

Side Type Rock breaker for excavators is often used for Versatile applications including rock broken, paving a road, building demolition, etc.


The product has the following characteristics:

1.Easy to locate and control;

2.More conducive to excavate;

3.Weight lighter, the lower risk of broken drill rode

4. High quality materials and special precision technology ensure better impact, explosive power, and stability.

5. Its high-quality high-pressure accumulator can reduce impact, increase impact energy, and make the working ability more intelligent.

Product Description

📊 Product Parameters
Model Unit HD400 HD450 HD530 HD680 HD750 HD850 HD1000 HD1350A HD1400A HD1500 HD1550 HD1650 HD1750 HD1850 HD1950
Suitable Excavator Weight ton 0.8-2.5 1.2-3.0 2.5-4.5 4.0-7.0 6.0-9.0 7.0-14.0 11-16 18-26 18-26 27-35 28-35 30-40 36-40 40-55 45-60
Chisel Diameter mm Φ40 Φ45 Φ53 Φ68 Φ75 Φ85 Φ100 Φ135 Φ140 Φ150 Φ155 Φ165 Φ175 Φ185 Φ195
Operating weight (Side) kg 70 90 120 250 380 510 765 1462 1795 2144 2413 2650 3788 4516 5213
Operating weight (Top) kg 80 100 120 298 375 577 890 1515 1808 1972 2632 3065 3909 4703 5435
Operating weight (Box) kg 90 126 152 295 375 571 861 1500 1801 2071 2555 2833 3991 4886 5610
Height mm 1135 1213 1317 1620 1899 2161 2316 2813 2813 3063 3115 3275 3556 3852 3986
Required oil flow l/min 15-30 20-40 25-50 40-70 50-90 60-100 80-110 130-150 120-180 160-180 200-240 220-260 260-280 260-300 280-310
Operating pressure bar 90-120 90-120 90-120 110-140 120-150 130-160 150-170 160-180 160-180 160-180 160-180 180-200 220-260 240-280 240-300
Impact Rate bpm 800-1400 700-1200 600-1100 500-900 400-800 400-800 350-700 350-600 350-500 300-450 300-450 200-350 200-350 200-250 180-200
Hose diameter inch 1/2 1/2 1/2 1/2 1/2 3/4 3/4 1 1 1 1 1/4 1 1/4 1 1/4 1 1/4 1 1/4
Impact power joule 200 300 300 650 700 1200 2847 3288 4270 5694 7117 9965 12812 16500 18500
📝 Product Description

As one of the leading Hydraulic Hammer manufacturers, we provide a full range of Hydraulic Hammers for excavators from 0.8-25 tonne. They are suitable for all kinds of brands and models of excavators. Breakers, with their advantages of safety and efficiency, have been widely used in secondary crushing in mining areas, gradually replacing secondary blasting for large block crushing. In mining operations, the application of hydraulic fracturing hammers under certain special limiting conditions presents unique advantages, especially in selective mining and non blasting mining operations, making it a new type of mining method.

We can offer the OEM/ODM services of excavators attachments. The product can be customized according to your personalized requirements. All products have undergone the entire process of quality control from accessory procurement to product delivery, and have obtained ISO9001 quality management system certification.

"Putting customers at the center and providing attentive service" is our business philosophy. Innovation and efficiency, continuous improvement, striving for excellence, and service first are our core values. We focus on team management and business management, establishing a comprehensive system for personnel management, quality management, safety management, and environmental management, effectively ensuring safety production and product quality.

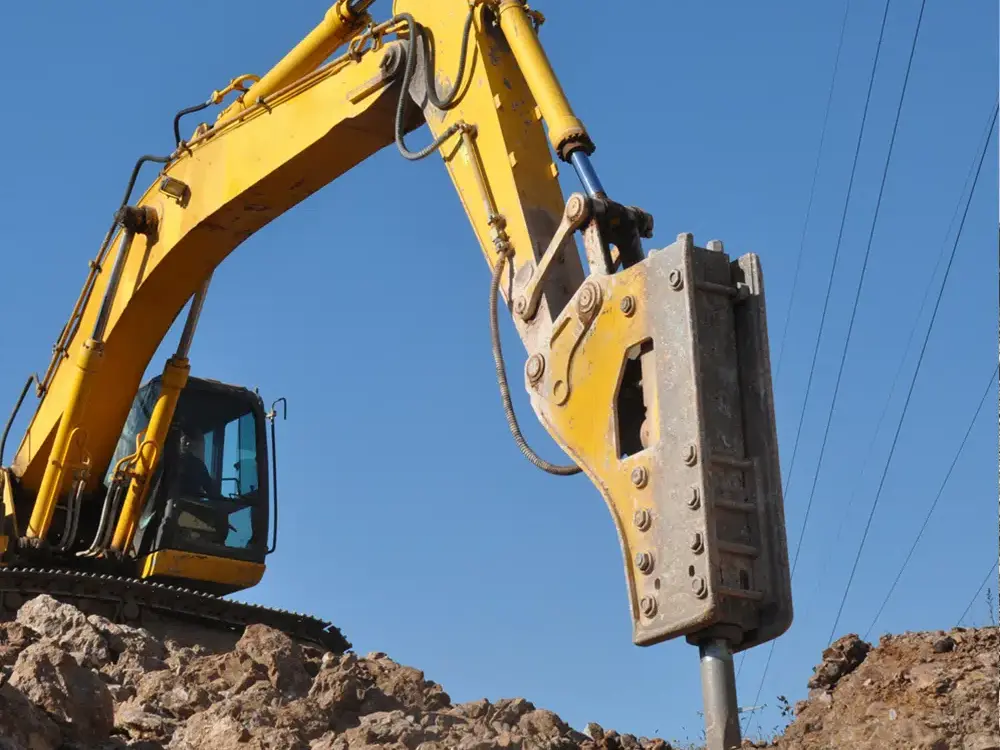

Hydraulic Rock Breaker 1

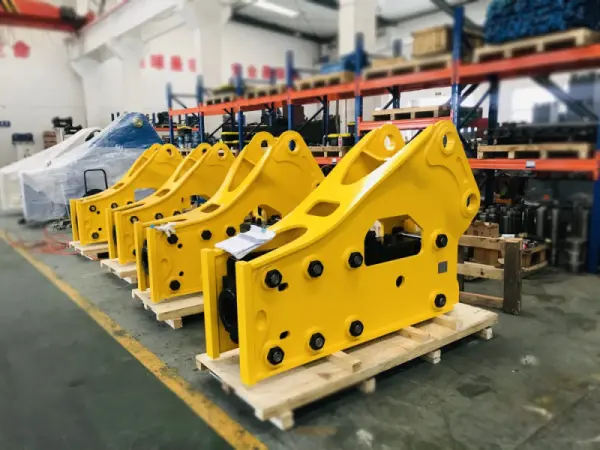

Hydraulic Rock Breaker 2

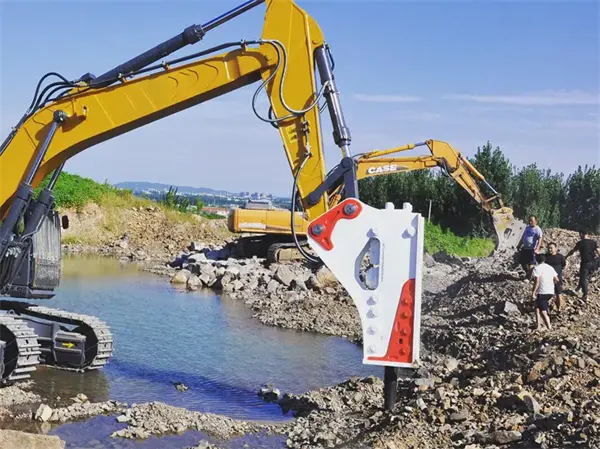

Hydraulic Rock Breaker 3
Key Features
01
Easy to locate and control during operation.
02
More conducive to excavation efficiency.
03
Lighter weight design reduces the risk of broken drill rods.
04
High-quality materials and precision technology ensure better impact and stability.
05
High-quality high-pressure accumulator increases impact energy and intelligent work ability.
Frequently Asked Questions
How do I choose the correct hydraulic hammer for my excavator?
Selection depends primarily on the weight of your excavator and the type of material you intend to break. Refer to our parameter table for "Suitable Excavator Weight" to match your machine's tonnage with the appropriate HD model.
What is the advantage of having a high-pressure accumulator?
A high-quality accumulator helps to absorb pressure spikes within the hydraulic system, protecting the carrier's pump while simultaneously increasing the impact energy for more powerful breaking performance.
Are your hydraulic breakers compatible with all excavator brands?
Yes, our hydraulic hammers are designed to be compatible with a wide range of global excavator brands and models, provided the hydraulic flow and pressure requirements are met.
What kind of maintenance is required for these hammers?
Regular maintenance includes daily greasing of the chisel, checking for loose bolts, inspecting hydraulic hoses for leaks, and monitoring the gas pressure in the back head and accumulator.
Do you offer customization for specific attachments?
Yes, we provide full OEM and ODM services. We can customize hydraulic attachments based on your specific technical requirements, design documents, or operational needs.
What materials are used to ensure the durability of the chisel?
We use high-quality alloy steel combined with special precision heat treatment technology to ensure the chisel has the necessary hardness and toughness to withstand high-frequency impacts.
